You have more flexibility in choosing your Light Recipe

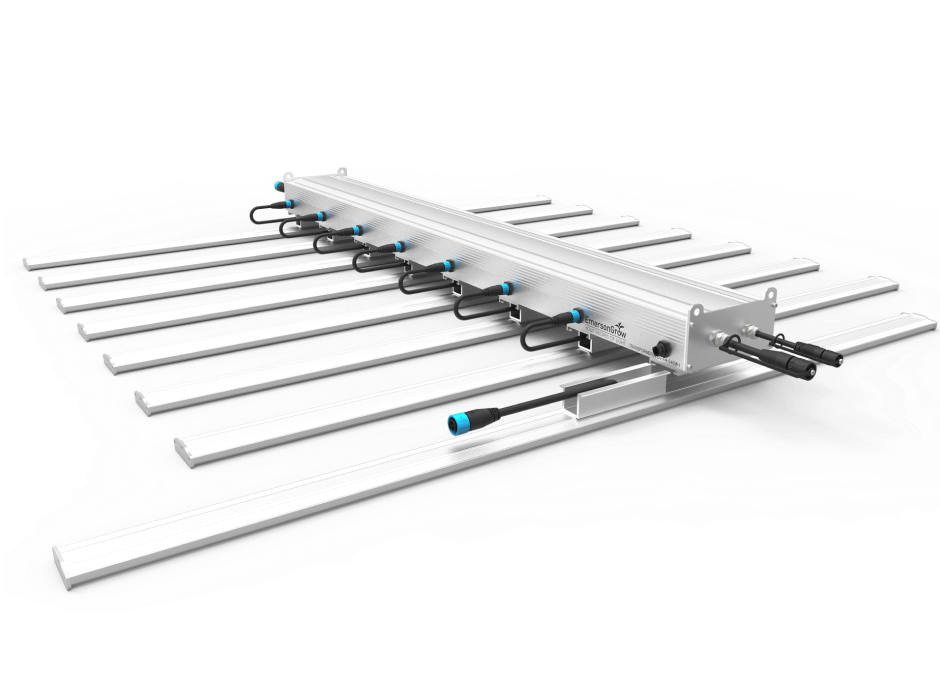

Removable Light Bar Design
More flexibility to easily interchange pre-designed light recipe bars


Single or Dual Dial Design
Used for easy control of energy output with single or dual light recipes.

Frequently Asked Questions
How can you use the Transformer | EGX4?

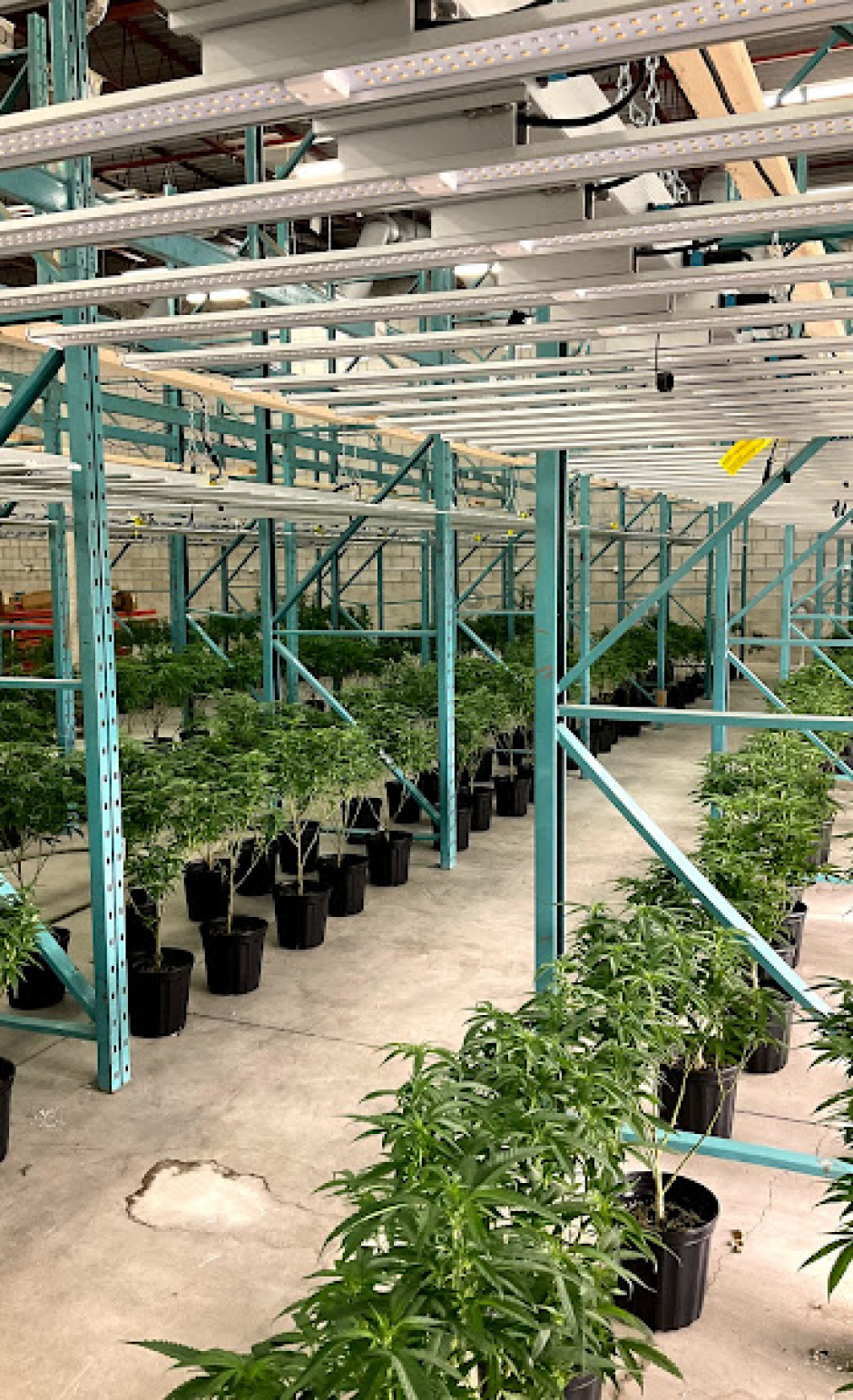

The light is widely used for cannabis cultivation and indoor vegetable growers looking to enhance their yields while managing lighting intensity and PAR at various stages of their plants life cycle to produce specific end results.
What is meant by universal and flowering spectrums?
We have known that different light spectrums have widely varied effects on plants. Universal spectrum or “full spectrum” are wavelengths in a broad band of light, more similar to the sun, which renders a “white” light, which is optimized for all stages of plant growth Flowering spectrum are wavelengths in a narrow band of red light, these wavelengths encourage stem growth, flowering and fruit production.
What is the difference between the single and dual dial design?
Our Tranformer EGX4 are equipped with single or dual dial design for easy control of intensity with single or dual light recipes. In a dual dial design, dial A will control the 1st, 3rd, 5th and 7th light bars, where as dial B controls the 2nd, 4th, 6th and 8th light bars. That means, you can have both universal and flowering recipe light bars in one light. You can turn on either one or both at the same time; you can also turn on certain percentage of each, for example, 25% universal and 50% flowering.
Detailed Specifications
EGX4-320W-U | EGX4-640W-U | EGX4-320W-F | EGX4-640W-F | |
---|---|---|---|---|
Size | 4ft x 4ft | 4ft x 4ft | 4ft x 4ft | 4ft x 4ft |
Power | 320W | 640W | 320W | 640W |
Input Voltage | 100-277V 347V |
100-277V 347V |
100-277V 347V |
100-277V 347V |
ppf (µmol/s) | 897 | 1794 | 778 | 1555 |
Efficacy (µmol/J) | 2.7 | 2.7 | 2.43 | 2.43 |
Spectrum | Universal | Universal | Flowering | Flowering |
Height above canopy (min) | 2-3 ft | 2-3 ft | 2-3 ft | 2-3 ft |
Coverage | 6ft x 6ft | 6ft x 6ft | 6ft x 6ft | 6ft x 6ft |
IP | 54 | 54 | 54 | 54 |
